E-glass insulation tape features
good insulation ability、high-temperatrue resistance, becoming necessary binding materials
for electrical machinery and appliance. The tapes can be used in different
types of motors and generators, resulting in reliable insulation performance、 long working life and reducing the volume and the weight.
E-glass fiber without wax net tape has the advantages
of good insulation performance、high-temperature
resistance、strong pull while banding and excellent
impregnation for resin. It is used as ideal banding material for transformer
manufacturing.
1.specification of E-glass tape
style |
Thickness |
Width |
Yarn(tex * strand) |
Construction |
Breaking strength |
|||
Warp |
Filling |
Warp |
Filling |
|||||
ET-60 |
0.06±0.006 |
10,15 |
6*2 |
6*2 |
27±1 |
22±1 |
≥325 |
|
ET-100 |
0.10±0.01 |
12*2 |
12*2 |
27±1 |
15±1 |
≥500 |
||
ET-120 |
0.12±0.012 |
12*2 |
24*1 |
27±1 |
15±1 |
≥500 |
||
ET-150 |
0.15±0.015 |
12*4 |
12*2 |
27±1 |
15±1 |
≥675 |
||
ET-170 |
0.17±0.017 |
12*4 |
12*2 |
20±1 |
15±1 |
≥750 |
||
ET-200 |
0.20±0.02 |
12*6 |
12*4 |
20±1 |
15±1 |
≥875 |
||
ET-300 |
0.30±0.03 |
33*6 |
33*3 |
9±1 |
6±1 |
≥1500 |
*Special specification are available upon request.
2. Specification of E-glass Net Tape
style |
Thickness |
Width |
Yarn |
Construction |
Breaking strength |
||
Warp |
Filling |
Warp |
Filling |
||||
ET-200 |
0.2 |
20,25 |
33*4 |
33*2 |
10±1 |
6.8±1 |
≥1200 |
ET-250 |
0.25 |
33*4 |
33*3 |
10±1 |
6.8±1 |
≥1200 |
|
ET-300 |
0.30 |
33*6 |
33*3 |
10±1 |
6.2±1 |
≥1500 |
*Special specification are available upon
request.
*Fabric can be woven in satin structure
|
|
|||||||||

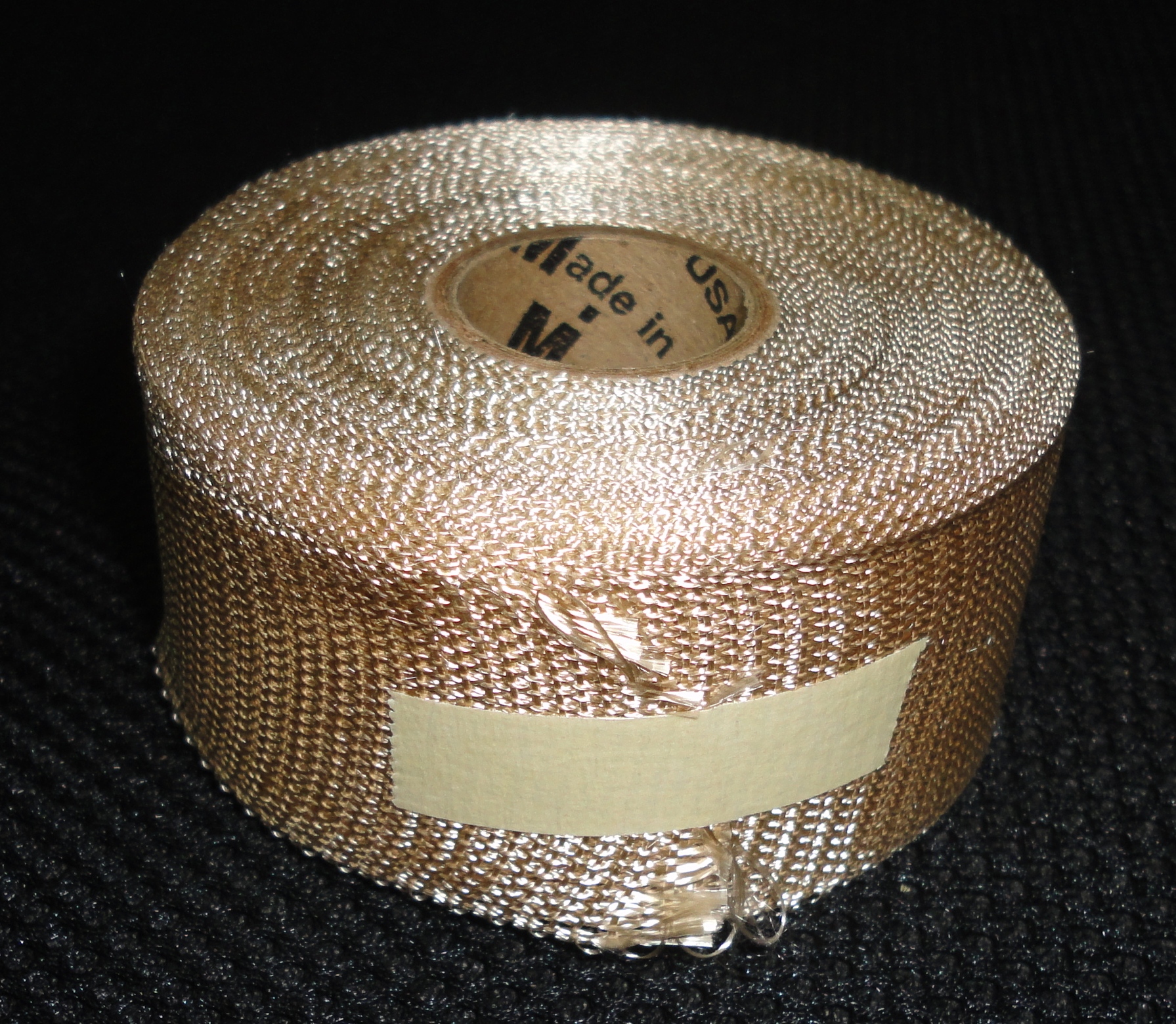

Twist Weave Tape

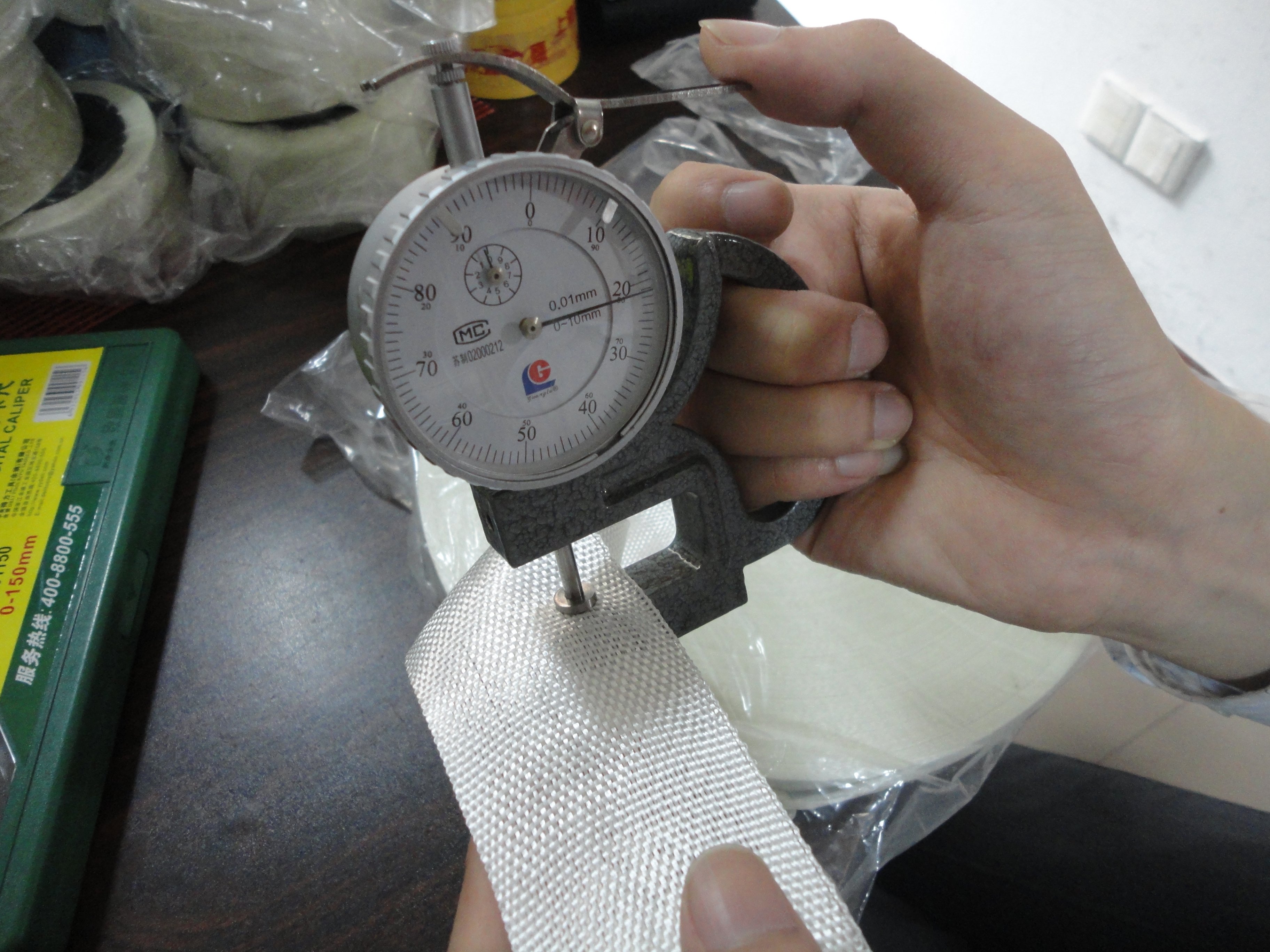

Test Thickness

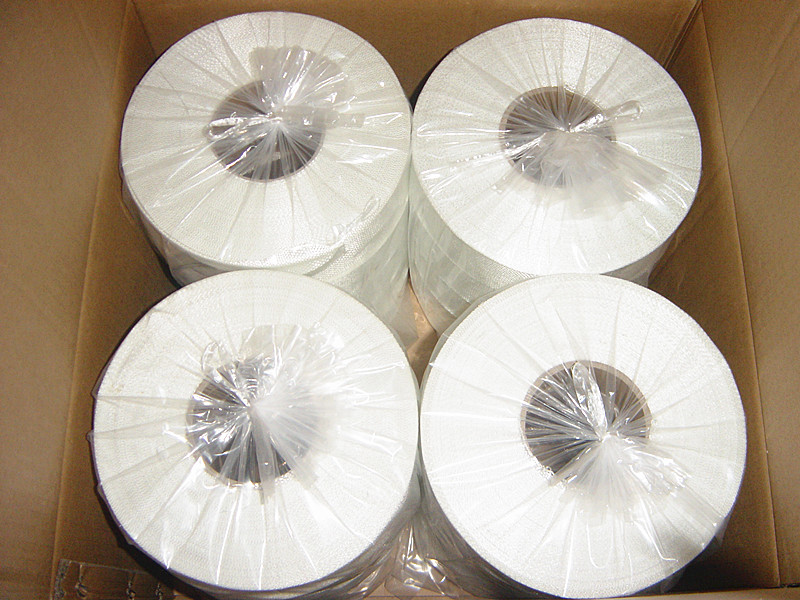

E-glass Tape Package(core ID Φ14mm)
E-Glass Net Tape Package(core ID Φ76mm)
|
