Woven Tape Impregnated with Polyester or Epoxy Resin

       Our company specializes in manufacturing of E-glass fiber tape、polyester filament tape、polyester filament and E-glass fiber interlace tape impregnated with polyester resin or epoxy resin.The tapes above mentioned are woven with yarns then impregnated with resins into semi-curing products. They are widely used as banding materials in the fields of transformer、reactor and lightening arrester, becoming good insulating material for manufacturers.

Property：

Type

HY  750

HY  740-1
HY  740-2
HY  740-3
（Epoxy）

HY  741-1
HY  741-2
HY  741-3
（Polyester）

Thermal class

H

F

F

Volatile content

≤4%

≤6%

≤6%

Loss of weight at calcination

29%±2%

30%±2%

30%±2%

Soluble resin content

≥90%

≥90%

≥90%

Tensile strength before curing


Thickness（0.14mm）≥ 500N/cm

Thickness（0.20mm）≥ 800N/cm

Thickness（0.30mm）≥1000N/cm

Maximum pull while banding


Thickness（0.14mm）≥400N/cm

Thickness（0.20mm）≥700N/cm

Thickness（0.30mm）≥900N/cm

Specification:

Thickness (mm)

Width (mm)

Length (M/pancake)

0.14、0.20、030

10、15、20、25、30、50

100、 150、 200

* Special specification and package are availabe upon request,(such as spool)

Curing cycles:

Temperature (℃)

160

150

135

120

115

Time(hour)

4

5

8

16

24

* The above times do not include the time for the workpiece to reach the curing temperature.

Storage stabiliy:

Storage temperture ℃

0℃~20℃

21℃~30℃

Time(day)

60

45

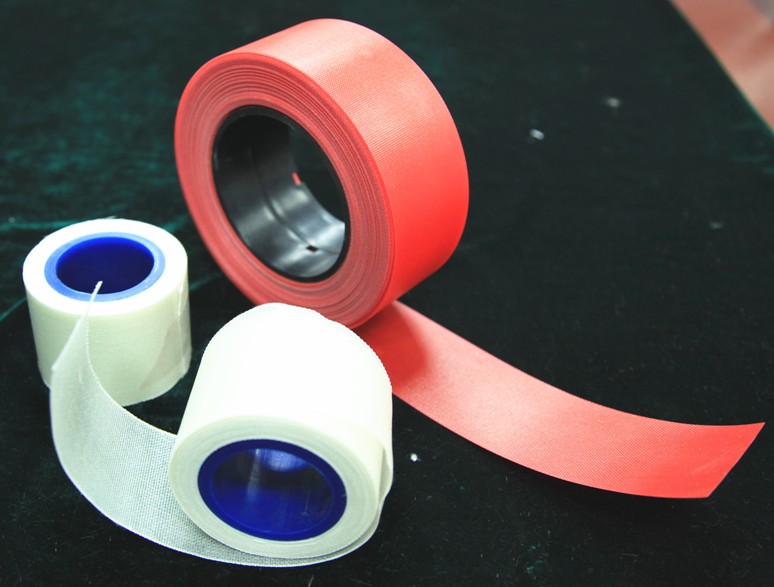

Epoxy Resin Impregnated Cured Woven Tape


Impregnated Woven Tape Package

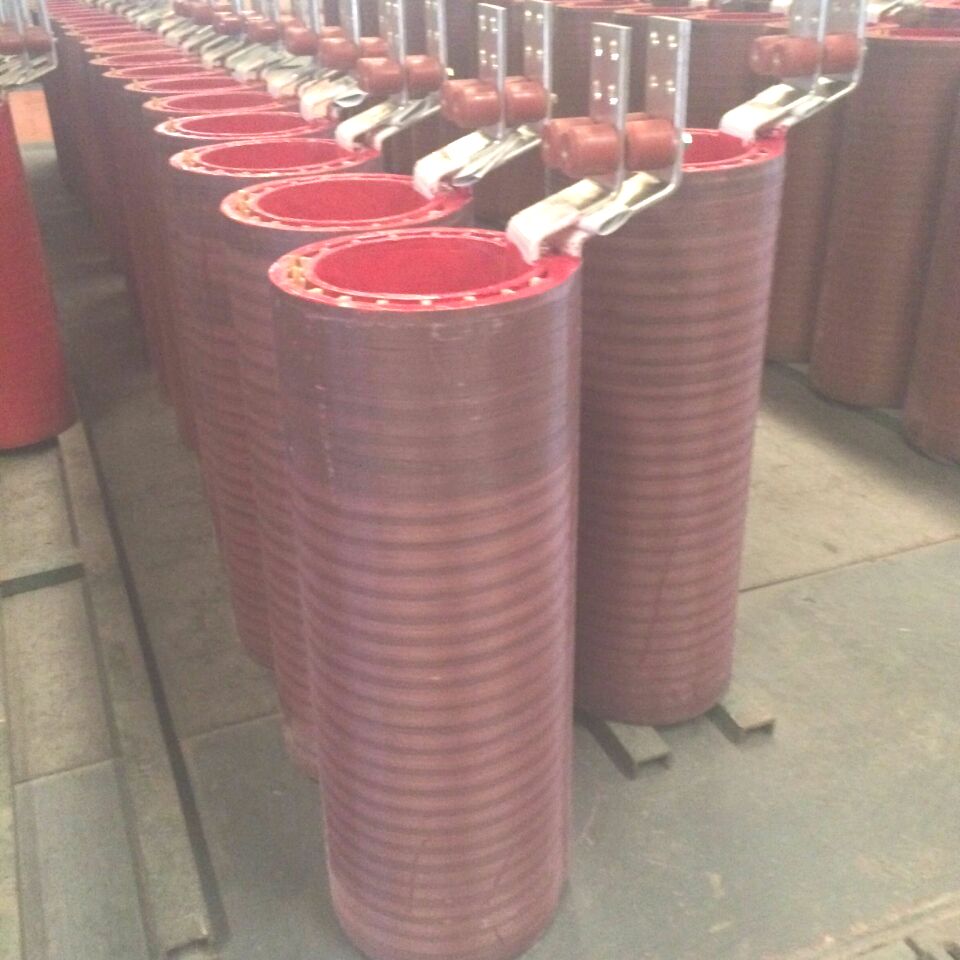

Transformer、 Rreactor Coil Banding

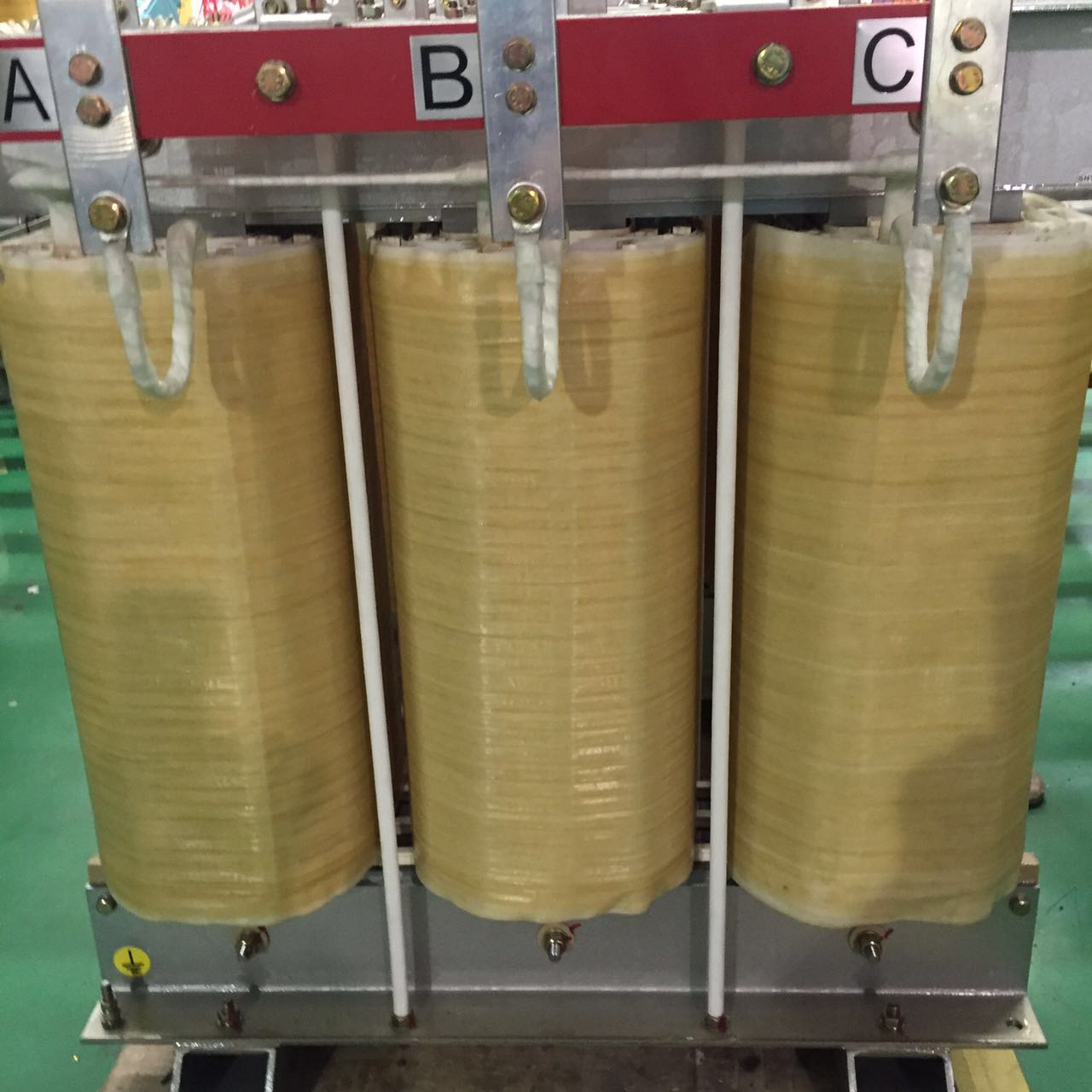

Transformer Coil Banding
